In this tutorial I am going to create a Temperature Monitoring and Alerting system that will:

  • collect data from multiple temperature sensors of remote IoT devices RaspberryPi
  • store the data in a DB Google Cloud BigQuery
  • and notify users via a messenger Telegram

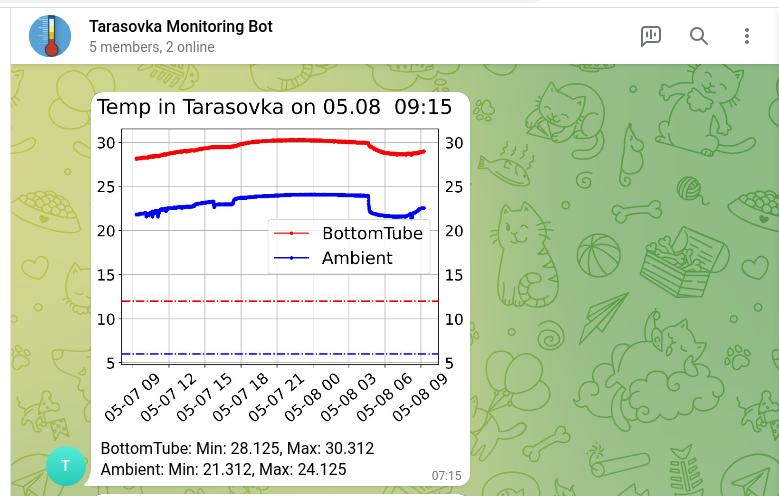

The final result:


Architecture & Design principles

As you can see on the diagram below, there are two main data processing paths:

  • write path what happens when there is new data from a sensor: we store data and check if we need to send an alert
  • read path what happens on cron: we read data for the last 24 hours, create a plot and notify users in a group chat via Telegram.


Code-wise, I will focus on these main areas:

  • fault-tolerance: for example:
    • all operations will be implemented idempotently and with retries.
    • all errors will be propagated end-to-end (an error occured on RaspberryPi will be delivered via Telegram).
  • extensibility: for example:
    • the Ingest module above will notify all subscribers via a uniform interface;
    • BotNotifier and Alerting are parameterised with a generic Sender interface that can have many implementations (one of them, being Telegram).
  • unit-tests: running a wide gamut from simple unit-tests to unit-test with mocks & patches, as well as semi-manual integration tests.
    • For example, we will check that Alerting calls send() function of the Sender interface if temperature drops below a threshold.

Below is a brief description of each of the components form the diagram above.

Components

Raspberry Pi

I will use RaspberryPi with two attached (physical) temperature sensors.

It has a service (daemon) that continuously collects measurements from the sensors and sends them via an HTTP request to a google function, which publishes them to a Pub/Sub topic.

Setup of RaspberryPi is desribed here.

Topic

Google Pub/Sub topic serves as a buffer/queue between producers (RaspberryPi) and consumer (Google Cloud Function, Ingest on the diagram above). The latter is triggered on each message in the topic.

We create and configure the topic programmatically.

Ingest

This is the main entry point for all incoming data from IoT devices.

Ingest canonicalises incoming json into our “standard” python dataclass DeviceDatum that is used throughout the project, and which is one of the main data-types.

Ingest is parameterised with a list of abstract consumer interfaces (in our case, there are two consumers: sensor_db and bot_alerting) and then notifies each of them with DeviceDatum message.

Alerting

Alerting is parameterised with the Sender interface, Alerting implements the Consumer interface and receives DeviceDatum from Ingest. It then checks if temperature is lower than a threshold.

If the temperature is lower, it uses Sender to notify users.

Sender

Sender is an abstract interface that allows the code to notify users in a messanger-agnostic way.

I will have just one implementation of the interface — Telegram.

SensorsDB

sensor_db implements the consumer interface, receives DeviceDatum from Ingest and uses sensors_db_bg to store data in BigQuery.

Job Scheduler cron

I register on_cron function in Cloud Cron service. The function uses bot_notifier for regular daily notifications.

How to setup Google Cloud Cron see here.

Bot Notifier

bot_notifier is parameterised with a Sender, then, using sensors_db_bq it retrieves data from the database for the last 24 hours and creates a plot with a text message. It then uses Sender (which, in our case, is telegram_sender) to send message to a group chat.

Telegram

How to create Telegram bot and register a webhook, see here.

Virtual machine

In order to be able to ssh to RaspberryPi, I need an intermediate VM with a static public IP address (I will use it to setup a reverse ssh tunnel).

How to provision a virtual machine in Google Cloud you can find here.
